OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X 300.000 X 330.200

IMM Tonnage : 130T

Mold Weight : 179.7kg

Tool life : 500k shots

Steel of cavity and core : Harden with S136

Part material : PC+20%GF

Part net weight : 7g

Part size : 3123.3*33.5*26.66mm

Gate : Point gate

Type : Three-plates mold

Slide : 2

Contact Now

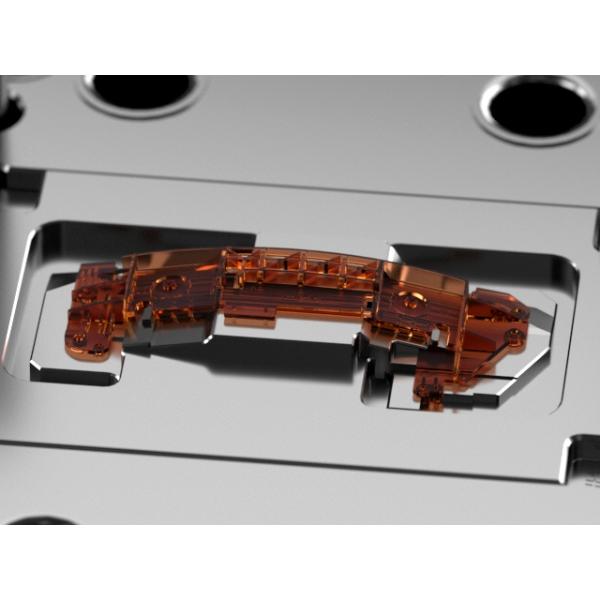

Transparent RGB camera bracket (1*1)

No.25173

The mold adopts LKM standard; harden the mold with S136 to have good anti-corrosion and anti-wearing performance, good polishability, machinability and size stability; the three-plates mold with pin point fate is self-degating with minimized gate marks, with aesthetic part appearance

OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173

Mold details
L W H Net weight Slide
300mm 300mm 330.2mm 179.7kg 2
Surface polished to SPI B-2, with high glossiness and dark gloss

OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173

Part details
L W H Material
123.3mm 33.5mm 26.66mm PC+20%GF

Fit 130T machine

OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173

Display diagram

OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173
